风扫式分级磨
行业值得使用的研磨机

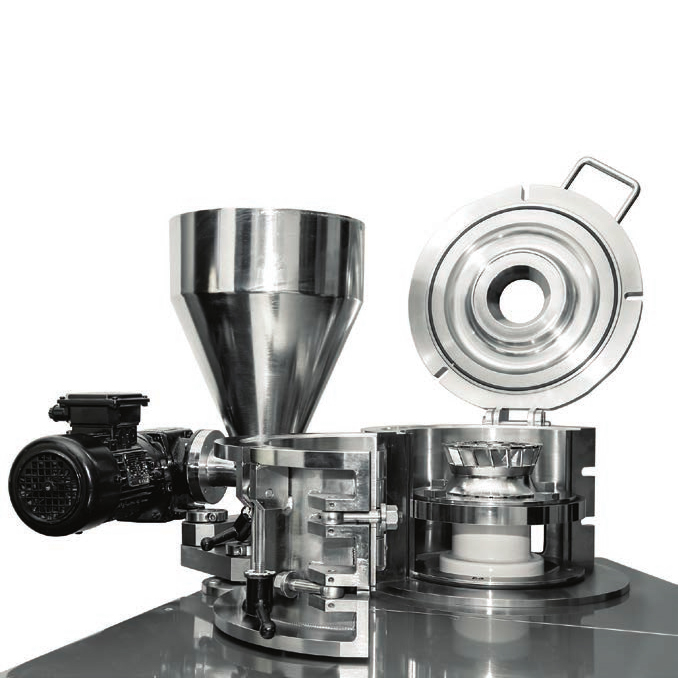

这个动态冲击式磨机的设计在于, 它可以将干燥物料研磨和分类成粗粉或细 粉。冲击尺寸的减小与控制排出材料的粒度的配对, 这个过程是通过将粗颗 粒再循环回研磨区域完成的。 CMS磨机根据尺寸, 表面处理, 建筑材料和设计的要求提供多种款式。适用于化学, 医药, 矿产和食品行业, 它将能配合您的生产计划, 以高的运营效率提供优良的产品。这是生产细粉末行业的完美长期解决方案。
特点和优点
• 研磨并分类粒度低至D90-2um • 低研磨温度, 是热敏材料的理想选择
• 节能实用设计 • 完全封闭, 创造无尘环境
• 易于清洁, 维护和操作 • 由耐用的固体钢和不锈钢制成
• 粒度可调, 产生粗粉或细粉 • 产品型号适用于3-400hp
AIR-SWEPT CLASSIFIER MILL AIR-SWEPT CLASSIFIER SYSTEM
Features and Benefits
This dynamic impact grinding mill is designed to grind and classify dry materials into coarse or fine powders. Impact size reduction is paired with a classifier which controls the particle size of the outlet material by recirculating coarse particles back into the grinding area. The CMS mill is available in a wide range of sizes, finishes, construction materials and designs. Suitable for chemical, pharmaceutical, mineral and food industries, it will withstand your production schedule and deliver superior quality product at peak operational efficiency. This is the perfect long-term solution for industries producing materials into fine powders.
• Grinds and classifies down to D90-2um
• Energy-efficient compact designs
• Easy to clean, maintain & operate
• Particle size is adjustable, creating coarse or fine powders
• Low grinding temperatures, ideal for heat-sensitive materials
• Completely enclosed, creating a dust-free environment
• Constructed of durable solid steel & stainless steel
• Models available in 3-400hp
风扫式分级系统
CMS的优越技术用于许多行业, 包括 化学, 医药, 矿物和食品。实用式一站 式服务的风扫式分级系统提供高效, 准确的物料研磨和分类, 以满足您的 所有质量和生产要求。
组件
• 风扫式分级磨
• 螺旋进料或气动进料
• 高效旋流分离器 (或旋流分级机)
• 除尘器 (99.9％无灰尘至1um)
• 工业风扇
• 控制面板
• 该系统可独立运行或集成到较大的 工厂设计中, 并与辅助设备 (如预 破碎机, 传送带, 搅拌机, 挤压机, 筒 仓, 垃圾箱等) 配合使用。
• CMS的特点在于能根据您的个人要 求来定制这些系统。
AIR-SWEPT CLASSIFIER SYSTEM
Features and Benefits • Grinds and classifies down to D90-2um • Energy-efficient compact designs • Easy to clean, maintain & operate • Particle size is adjustable, creating coarse or fine powders • Low grinding temperatures, ideal for heat-sensitive materials • Completely enclosed, creating a dust-free environment • Constructed of durable solid steel & stainless steel • Models available in 3-400hp Components • Air-swept classifier mill • Screw feed/pneumatic feed • High-efficiency cyclone (or cyclone classifier) • Dust collector (99.9% dust-free down to 1um) • Industrial fan • Control panel This system can operate independently or be integrated into a larger plant design and operate in conjunction with auxiliary equipment such as pre-crushers, conveyors, blenders, extruders, silos, bin vents, etc. The distinguishing feature CMS offers is the ability to customize these systems in order to meet your individual requirements. CMS’s superior technology is used in many industries including chemical, pharmaceutical, mineral and food. The compact, turn-key, air-swept classifier system offers efficient, accurate material milling and classification to meet all your quality and production requirements.
台式系统
这种方便的便携式研磨系统是为批量测试和产品开发而设计的。 它具有在实用型可移动单元内的风扫式分级系统的所有理想的研磨能力。
特征
• 由不锈钢或软钢组成
• 可调颗粒大小可达D90-2μm
• 便携式, 易于清洁的设计
• 能够进行50 Ib.的批量测试
• 理想的研发测试或小批量生产适用系统
• 螺旋进料器配有料斗, 内置墨盒过滤器和旋流分离器
• 旋转阀, 带入口和出口消声器的鼓风机
• 侧面安装的控制面板
TABLE TOP SYSTEM
This convenient, portable grinding system is designed for batch testing and product development. It has all the desired grinding capabilities of the airswept classifier system within a compact moveable unit.
Features
• Composed of stainless steel or mild steel
• Adjustable particle size down to D90-2 um
• Portable, easy to clean design
• Capable of 50 lb. batch testing
• deal for R&D testing or small production
• Screw feeder complete with hopper, a built-in cartridge
• filter and cyclone
• Rotary valve, blower set with inlet and outlet silencer
• (85 dba @ 5ft. with silencer)
• Side-mounted control panel
吸附剂技术
干吸附剂注射 (DSI) 排放控制
CMS 提供便携式即插即用的吸附剂处理系统, 其设计考虑了多功能性。完整 的系统允许用户直接从散装袋到注射点处理材料, 以及将产品研磨并发送到 注射点的能力。这种最先进的设计不仅有助于减少排放, 还证明吸附剂技术 是减少空气污染的最有效, 最低成本的方法。 方便的设计使您能够将从1/4“的进料任何尺寸的颗粒, 注入至低至d90为5um 的成品中。此外, 该系统还具有即插即用功能和自己的支架和附件, 您只需为 系统提供电力即可。
从烟道气中去除污染物
CMS系统将利用所需的吸附剂来去除各种污染物, 诸如汞 (HG), 二 氧化硫 (SO2 ), 三氧化硫 (SO3 ), 盐酸 (HCl) 以及颗粒物等。
特点和优点
• 提供从便携式到全尺寸CMS 300生产系统
• 一站式工程设计
• 完整的设备供应
• 机械/电气安装
• 操作员培训项目
• 工程支持
SORBENT TECHNOLOGIES
Dry Sorbent Injection (DSI) Emissions Control
CMS offers portable, plug-and-play sorbent processing systems designed with every consideration of versatility in mind. The full system allows the user to process material directly from the bulk bag to injection points, as well as the ability to mill product and send to an injection point. This state-of-the-art design helps to not only reduce emissions but proves that sorbent technologies are the most efficient, cost-effective way to reduce air pollution. The handy design gives you the ability to inject any size particulate required from a feed of 1/4” to a finished product size as low as a d90 of 5um. Additionally, the system comes with plug-and-play features and its own stand and supports. All you do is bring power to the system.
Pollutant Removal from Flue Gas
CMS systems will process the sorbents required to combat pollutants such as mercury (HG), sulfur dioxide (SO2 ), sulfur trioxide (SO3 ), hydrochloric acids (HCI) as well as particulates.
Features and Benefits
• Available from portable to full-scale CMS 300 productionsize
• system • Plant design from start to finish
• Complete equipment supply
• Mechanical/electrical installation
• Operator training program
• Engineering support
